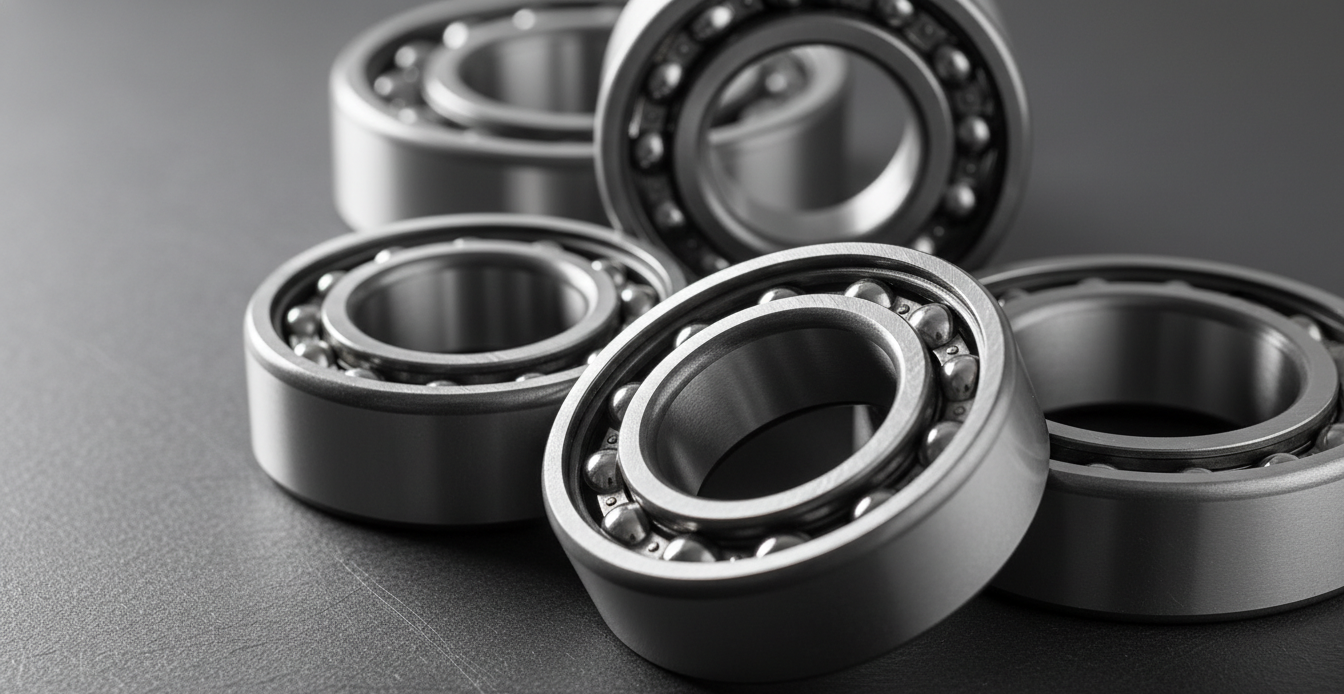

Deep Groove Ball Bearing Wholesale: Precision Grades for Electric Motors and Gearboxes

Why the Precision Grade You Specify Determines Whether Your Motor Performs to Nameplate Rating

In 14 years of supporting wholesale bearing procurement for electric motor manufacturers, the single most common specification error I encounter is precision grade confusion — buyers who specify P0 when they need P6, or who order P5 for applications where P0 would perform identically at a lower cost. The cost difference between precision grades is real (typically 15–30% from P0 to P6), but the performance consequence of using the wrong grade in either direction is equally real: either you are paying for precision you do not need, or you are specifying a bearing that will not survive the application’s speed and load requirements.

The precision grade designation — P0, P6, P5 in the ISO/ABEC system — describes how tightly the bearing’s dimensional tolerances are controlled during manufacturing. A P0 bearing might have a bore tolerance of ±10 microns; a P6 bearing has the same bore tolerance tightened to ±6 microns; a P5 bearing tightens it further to ±4 microns. These are not differences a caliper can detect in the field — they require precision measuring equipment. But the functional consequences at operating speed are significant. At 3,000 rpm, a bearing with ±10 microns of runout creates measurable vibration that a ±4 micron bearing does not. At 10,000 rpm (common for spindle motors in CNC equipment), that same difference can mean the difference between a bearing that lasts 20,000 hours and one that fails in 3,000 hours.

Understanding Deep Groove Ball Bearing Precision Grades

P0 (ABEC-1): The Standard Industrial Grade

P0 is the most commonly manufactured precision grade because it represents the standard (hence “P0″ — not “P7″ or “standard” as might be expected) that applies to the majority of industrial bearing applications. For electric motors, P0 covers the specification requirements for the majority of general-purpose motors operating below 3,000 rpm with standard radial loads. If you are stocking bearings for a motor manufacturing program and you are not sure which precision grade to specify, P0 is the default starting point — not because it is the lowest quality, but because it is the correct grade for the majority of the market.

The practical consequence of specifying P0 when P6 is needed is increased vibration and reduced bearing life — not immediate failure, but a gradual degradation that shows up as warranty returns 18–36 months after the motor goes into service. If your motor’s end customer is running the motor in a factory floor environment with other machinery, some additional vibration is tolerable. If the motor is installed in a precision HVAC system where the motor’s vibration contributes to occupant complaints, the P0 motor will generate problems that are expensive to diagnose and resolve.

P6 (ABEC-3): The High-Speed Upgrade

P6 becomes the appropriate selection when the motor operates above 3,000 rpm, or when the application requires lower vibration than standard industrial motors typically deliver. The P6 tolerance band on bore, outside diameter, and raceway runout is approximately 40% tighter than P0. The practical benefit is measurably smoother operation at speed and extended fatigue life under combined radial and axial loading conditions. For motor manufacturers supplying motors to European customers with IE3 or IE4 efficiency class requirements, P6 is frequently the minimum specified bearing grade because the motor’s total vibration output must meet IEC 60034-14 testing standards for vibration velocity.

P5 (ABEC-5): Precision Machinery Applications

P5 is the precision class used in applications where sub-micron runout tolerance is required — CNC spindle motors, gearboxes, high-speed pumps, and aerospace accessories. The P5 bearing’s raceway finish is significantly smoother (typically Ra 0.05–0.08μm vs. Ra 0.1–0.15μm for P0), which reduces friction heat at high speeds and extends fatigue life under high cycle loading. For gearbox applications, P5 is the standard minimum specification on the input and output shaft bearings because the gear forces generate both radial and axial loads that demand tighter bearing clearance and runout control than P0 can reliably provide.

The Clearance Rating Decision: Why C3 Is Almost Always Correct for Motors

The bearing internal clearance rating — C0, C2, C3, C4 — describes the amount of radial internal clearance (the gap between the rolling elements and the raceways) before the bearing is mounted. This specification is more consequential for motor reliability than the precision grade, because it determines the bearing’s behavior under thermal load during normal operation.

Electric motors generate heat at the bearing seat from two sources: bearing rolling friction (which is a function of load and speed) and heat conducted from the motor windings. The motor shaft and inner ring typically operate 15–40°C above ambient temperature during normal operation. Because metals expand when heated, the inner ring expands radially onto the rolling elements, reducing the internal clearance. A bearing assembled with C0 clearance at room temperature can lose 50–70% of its internal clearance during normal motor warm-up. If the clearance loss brings the rolling elements into preload contact with the raceway — meaning the bearing has zero clearance or is actually compressed — the bearing will generate excessive heat, the lubrication film will break down, and the bearing will fail within weeks rather than years.

C3 clearance provides approximately 40–60% more internal clearance than C0 at the manufacturing stage, which means that even under maximum thermal expansion during motor operation, a C3 bearing retains adequate clearance for normal rolling element operation. This is why virtually every major electric motor manufacturer specifies C3 clearance as standard for their general-purpose motor programs — it is not a premium feature, it is the minimum required for reliable motor bearing operation.

When to Specify C2 or C4 Instead

C2 (extra clearance) is specified in applications where the operating temperature differential is larger than normal — such as motors driving high-output pumps where the bearing environment runs hotter, or motors installed in environments where ambient temperatures regularly exceed 50°C. C4 (extra-large clearance) is specified in heavy industrial gearboxes and rolling mill machinery where the thermal gradients across the bearing housing are extreme and unpredictable, requiring maximum clearance margin to avoid preload under any plausible operating condition.

Decoding the Vibration and Noise Grades

The vibration grade (V1, V2, V3) and noise grade (Z1, Z2, Z3) on a bearing specification sheet describe the bearing’s contribution to motor vibration and acoustic noise. These are increasingly important specifications for two categories of buyers: those supplying motors to markets with strict noise regulations (EU, North America, Japan), and those targeting premium efficiency motor classes (IE4, IE5) where total motor vibration is a measurable efficiency loss mechanism.

V1 is the smoothest vibration class — typically specified for motors in hospitals, recording studios, and precision laboratory environments. V2 is standard for general industrial motors meeting IEC 60034-14 Class A vibration. V3 is the loose classification used for heavy industrial motors where vibration is not a primary concern. The Z-series noise grades follow a similar hierarchy, with Z1 being the quietest and Z3 being the loudest acceptable industrial grade.

For a motor manufacturer whose end customer is specifying IE4 super premium efficiency motors, the bearing grade is not an isolated decision — it is connected to the motor’s total loss calculation. Bearing friction losses at high speed are a measurable component of the motor’s total losses, and a smoother bearing at high speed generates less friction heat, which slightly improves efficiency. While the individual bearing contribution is small (typically 0.5–2% of total motor losses at operating speed), IE4 and IE5 efficiency margins are measured in single-digit percentages — every friction reduction component contributes to the efficiency target.

The Deep Groove Ball Bearing: Why It Dominates Electric Motor Applications

The deep groove ball bearing accounts for approximately 70% of all bearing production worldwide, and its dominance in electric motor applications is not accidental — it is a consequence of the deep groove geometry being the most structurally efficient design for combined radial and moderate axial loads at the speeds typical of motor shafts.

The “deep groove” refers to the raceway shape: the circular arc of the groove is slightly larger than the radius of the ball. This geometry allows the bearing to accommodate radial loads (perpendicular to the shaft) and axial loads (along the shaft) simultaneously, with the groove depth providing lateral containment of the balls under combined loading. The result is a bearing type that can handle the motor shaft’s typical loading profile — predominantly radial from the rotor’s weight, with some axial component from magnetic forces — without requiring a separate angular contact bearing arrangement.

The friction coefficient of a deep groove ball bearing is the lowest of any bearing type at equivalent load ratings — approximately 0.001–0.0015 in properly lubricated conditions. This low friction translates directly into lower heat generation at the bearing seat, which extends lubricant life and reduces the thermal expansion concern described above. The combination of high load capacity, low friction, high speed capability, and simple structure (which means lower manufacturing cost) makes the deep groove ball bearing the default first choice for any motor shaft application.

What Wholesale Buyers Need to Verify in a Bearing Order

1. Bore and Outside Diameter Tolerance Against Shaft and Housing

The bearing’s bore diameter (d) and outside diameter (D) tolerances must be matched to the shaft and housing fit. For electric motors, the standard fit is: shaft = k6 or m6 interference fit; housing = H7 transition fit. When specifying wholesale orders, always confirm the bearing’s tolerance class matches your shaft and housing tolerances — a bearing with standard (P0) dimensional tolerances is designed for a standard fit, but if your motor design uses a tighter shaft tolerance for a specific vibration requirement, the bearing’s manufactured bore tolerance variation could exceed the fit tolerance budget.

2. Lubricant Compatibility and Greasing Interval

Electric motor bearings are typically pre-greased at the factory with a long-life polyurea grease rated for the motor’s operating temperature range (typically -30°C to +120°C for standard motor greases). If your motor operates in a high-temperature environment (above 80°C ambient), the standard grease may degrade faster than expected. D&M Bearings specifies Chevron and Great Wall greases for their standard production bearings, with high-temperature options (250°C+ rated greases available for industrial oven motors and bakery equipment). Always specify the operating environment temperature range when requesting a quotation — the grease choice is a bearing lifetime decision.

3. Seals vs. Shields: 2RS vs. ZZ vs. Open

The bearing seal type determines how effectively contamination is excluded from the rolling elements: Open (no seal) — used in applications where the bearing is oil-bath lubricated within a sealed housing, such as gearboxes. ZZ (metal shields on both sides) — provides basic contamination protection and retains lubricant; suitable for clean environments with shaft speeds above 3,000 rpm where rubber seals would overheat. 2RS (rubber seals on both sides) — provides the best contamination exclusion of the three options; used in dusty or humid environments, outdoor equipment, and motors exposed to washdown conditions. For general-purpose electric motors in clean indoor environments, ZZ is the most common specification. For outdoor motors or HVAC equipment exposed to moisture, 2RS is preferred.

4. Cage Material: Steel vs. Nylon

The bearing cage — the component that spaces and guides the rolling elements — is manufactured from either stamped steel, machined steel, or nylon (polyamide). Steel cages are the standard for industrial motor bearings — they provide adequate strength for the majority of applications and are compatible with all standard lubricants. Nylon cages offer lower friction (which slightly improves speed capability) and quieter operation, but they have lower maximum temperature limits (typically 120°C vs. 200°C+ for steel) and are not suitable for some harsh chemical environments. For high-speed or noise-sensitive motor applications, a nylon cage bearing may be worth the cost premium.

Market Context: Why China-Made Bearings Have Reached Tier-1 Quality at Tier-2 Pricing

The global bearing market has undergone a structural shift over the past decade. China-made precision bearings — once considered adequate only for non-critical applications — have advanced to the point where manufacturers like D&M Bearings, producing under ISO/TS 16949 (now IATF 16949) quality management systems, consistently meet the tolerances and life performance of established European brands at 30–45% lower pricing. This is not because European manufacturers have stopped improving — it is because Chinese manufacturers have invested in precision grinding equipment, statistical process control, and heat treatment technology that closes the gap with traditionally superior German and Swedish bearing steel quality.

For wholesale buyers, this shift means the question is no longer whether Chinese-made bearings can meet the quality specification — for the majority of electric motor applications, they demonstrably can. The question is whether the supplier has the documentation, certification, and technical support capability to be a reliable long-term supply chain partner. ISO/TS 16949 and IATF 16949 certification provides the quality system framework. Export documentation to 30+ countries demonstrates international supply chain experience. The combination of both is the qualification criteria that matters.

Conclusion: Precision Grade and Clearance Together Define Bearing-Motor Compatibility

The two bearing parameters that most directly determine whether an electric motor performs reliably to its design life are the precision grade (which determines vibration and speed capability) and the clearance class (which determines whether the bearing survives thermal expansion during operation). Both specifications are interconnected — a P5 bearing with C0 clearance will fail faster in a motor than a P0 bearing with C3 clearance, because the precision of the bearing components does not compensate for inadequate internal clearance under thermal load.

For wholesale buyers evaluating deep groove ball bearing suppliers for electric motor programs, the specification checklist should include: (1) confirm precision grade matches the motor’s speed and vibration requirement; (2) confirm clearance class is C3 for standard motor applications unless a specific thermal analysis justifies C2 or C4; (3) verify the bearing’s basic dynamic load rating (C) exceeds the motor’s calculated bearing load by at least 3:1; (4) confirm seal type (ZZ for indoor, 2RS for outdoor/humid); (5) verify the supplier holds IATF 16949 or equivalent quality system certification. These five checks will prevent 95% of the motor bearing field failures that result in warranty returns and customer complaints.
