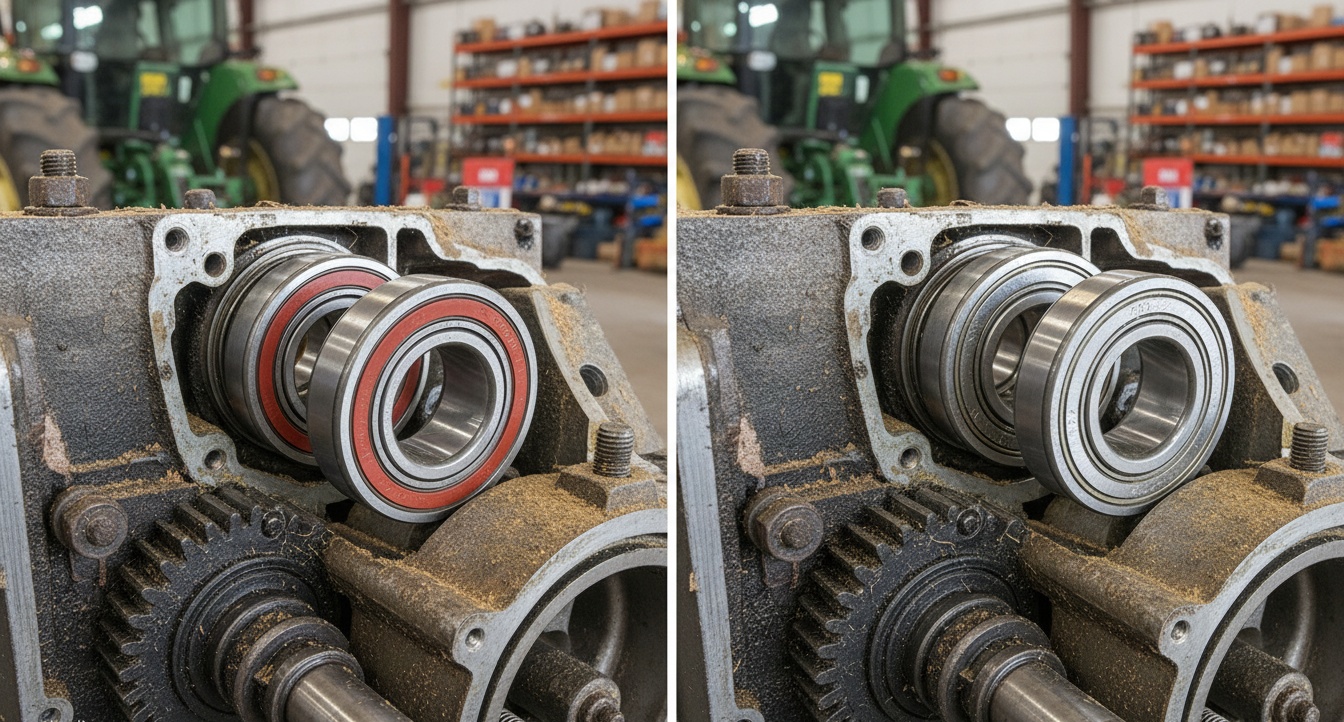

2 Shielding Types to Compare When Ordering Bearings for Dust-Heavy Agricultural Machinery

The Bearing Failure I Watch Happen Every Harvest Season

Every September, as combines roll across the grain belts of North America, Europe, and Southeast Asia, I get the same phone calls from agricultural equipment dealers and farm operations managers: “We had a bearing fail after 80 hours of harvest, and we replaced it three weeks ago.” Every single time, the root cause is the same — the bearing that failed was specified with non-contact shields (‘-2Z’ type) in an application that required contact seals (‘-2RS’ type).

I’ve spent years in this industry studying bearing failures in agricultural machinery, and the pattern is remarkably consistent. A farmer or dealer orders a batch of wholesale bearings based on price — the shielded (‘-2Z’) bearings are typically 10-15% cheaper per unit than the sealed (‘-2RS’) equivalents, which seems like a reasonable cost optimization when you’re buying 500 bearings at a time. The shielded bearings are installed on the combine harvester’s feeder house and grain elevator in August. By late September, during the peak of harvest season, the bearings are failing at an alarming rate — sometimes within 60-100 hours of operation. The combine sits idle for half a day waiting for replacement parts, and the harvest window narrows by the hour.

Because the dust environment inside a working combine harvester is among the most severe of any industrial application — with particle concentrations that can reach 500-2,000 mg/m³ during active threshing — non-contact shields are simply inadequate for primary dust exclusion in these positions. The math is brutally simple: a $4 bearing that costs $0.60 less but fails after 80 hours instead of 800 hours is not a savings. It’s a $40+ bearing failure plus $1,000+ in combine downtime during a time-critical harvest window.

Shielding Type 1: Contact Seals (RS Type) — Maximum Protection for Maximum Dust Exposure

Contact seals, designated by the suffix ‘-RS’ (rubber seal on one side) or ‘-2RS’ (rubber seals on both sides) in the bearing part number, are elastomeric sealing rings that make continuous physical contact with the bearing’s inner ring raceway surface. The sealing lip — typically made from nitrile butadiene rubber (NBR), fluoroelastomer (FKM/Viton), or polytetrafluoroethylene (PTFE) — is precision-molded to maintain a controlled contact force against the inner ring’s ground surface. This direct contact creates a zero-permeation barrier: theoretically, no particle larger than the molecular gaps in the rubber polymer can pass the seal.

In practice, contact seals provide the highest level of dust exclusion available in standard industrial bearing designs. Because the sealing lip maintains continuous contact with the inner ring, fine agricultural dust particles — including respirable crystalline silica particles as small as 2-5 microns — cannot enter the bearing’s internal raceway and rolling element interface. This is critical in combine harvester applications, where the dust cloud generated during active threshing contains both coarse chaff particles (easily excluded by any shield) and fine silica particles from soil ingestion through the header that can penetrate any non-contact barrier.

Seal Material Options for Agricultural Contact Seals

The seal material is as important as the seal type. For agricultural machinery, the following seal material specifications are most relevant:

• NBR (Nitrile Butadiene Rubber): Standard contact seal material, temperature range -30°C to +100°C, good resistance to petroleum-based greases and mineral oils. NBR is adequate for most standard agricultural applications where ambient temperatures stay between -10°C and +40°C. The cost-effective choice for standard harvest equipment.
• FKM / Viton (Fluoroelastomer): Premium contact seal material, temperature range -20°C to +200°C, excellent resistance to synthetic oils, ATF, and high-temperature grease degradation. FKM seals are recommended for combine cylinder/concave bearings (where frictional heat can raise bearing temperatures to 80-100°C during extended operation) and for any equipment using synthetic lubricants. Approximately 3-4x the cost of NBR per seal set.
• PTFE (Polytetrafluoroethylene): High-performance contact seal material with excellent chemical resistance and very low friction coefficient. PTFE seals offer the lowest rotational drag of any elastomeric seal material, making them valuable for high-speed applications. Temperature range -60°C to +250°C. Used in premium agricultural equipment and high-speed grain dryer fan bearings.

Contact Seal Limitations: Friction, Speed, and Temperature

Contact seals are not without their drawbacks. The continuous lip-to-raceway contact creates frictional torque that the bearing must overcome during rotation. For most agricultural bearing applications (combine feeders running at 200-400 RPM, grain elevators at 100-200 RPM), this frictional addition is negligible. However, in high-speed applications — grain dryer fans running at 1,500-3,000 RPM, for example — the seal friction can contribute meaningfully to power loss and heat generation.

For high-speed agricultural fan applications, we recommend either:

1. Low-friction contact seals (PTFE or special low-friction NBR compounds) rated for higher speed operation, or
2. Non-contact shields (Z type) with external labyrinth seals or felt washers to provide dust exclusion without internal bearing friction — this hybrid approach is common on grain dryer fan shafts in commercial grain operations.

Because the speed limitation of contact seals is defined by the linear velocity of the seal lip against the inner ring raceway, the DN value (bearing bore diameter in mm × RPM) must be calculated against the seal manufacturer’s speed rating for the specific seal compound. Standard NBR contact seals are typically limited to DN values of approximately 300,000-400,000, which limits most 6205-size (25mm bore) bearings to about 12,000-16,000 RPM — well above agricultural speeds but potentially relevant for small motor-driven agricultural implements.

Shielding Type 2: Non-Contact Shields (Z Type) — Lower Friction, Conditional Adequacy

Non-contact shields, designated by the suffix ‘-Z’ (single shield) or ‘-2Z’ (double shield) in the bearing part number, are thin metal (stainless steel or carbon steel) closure plates that are pressed into the bearing’s outer ring. Unlike contact seals, shields sit with a deliberate radial and axial clearance — typically 0.2-0.5mm gap — from the inner ring raceway. This clearance allows the bearing to rotate freely without any seal-on-race contact friction.

The non-contact design offers two genuine advantages over contact seals: lower rotational friction and higher speed capability. Because there is no mechanical contact between the shield and the inner ring, shielded bearings have essentially the same frictional torque as open (unsealed) bearings, and their speed capability is limited only by the bearing’s internal mechanics (roller centrifugal force, cage strength) rather than by any seal lip speed limitation.

However, and this is a critical however: the clearance gap that provides these friction/speed advantages is also a vulnerability. Because a 0.3mm radial clearance gap allows particles up to approximately 300 microns (0.3mm) in size to potentially enter the bearing interior, non-contact shields are fundamentally inadequate for primary dust exclusion in high-concentration dust environments.

Where Non-Contact Shields Are Adequate (And Where They Are Not)

In agricultural machinery, non-contact shields are conditionally adequate in the following applications:

• Tractor transmission and final drive bearings: These positions are enclosed within the tractor’s sealed transmission housing, which prevents direct dust ingress. The transmission housing provides the primary dust barrier; the bearing shields provide secondary protection against any contamination that enters the transmission.
• Planter drive chain bearings: Planters operate in relatively clean soil conditions during planting season (compared to harvest), and the chain and sprocket enclosure provides some dust protection. Shielded bearings are commonly used in planter drive trains as a cost-effective solution.
• Irrigation system drive bearings: Center pivot irrigation systems operate in relatively low-dust conditions compared to field equipment, and shielded bearings are standard in this application.

Non-contact shields are NOT adequate in:

• Combine harvester feeder house bearings: The feeder house is the most dust-exposed position on any combine. During active harvesting in dry conditions, dust concentrations can reach 2,000-5,000 mg/m³ —shielded bearings fail within days to weeks in this environment.
• Grain elevator bearings (boot and head): The boot pulley and head pulley bearings on grain elevators are exposed to grain dust continuously, with fine particles (<100 microns) penetrating any non-contact barrier over time.
• Combine cylinder/concave and separator bearings: These bearings run at high speed under high radial loads, generating significant frictional heat. The combination of high dust exposure and thermal cycling makes contact seals mandatory.
• Tillage equipment bearings (disc harrows, field cultivators): Working in freshly cultivated soil with high silica content, these bearings experience both dust ingress and high-impact shock loads that can displace poorly seated shields.

The Comparison Framework: Making the Right Shielding Decision

Here’s the decision framework we use with wholesale customers when specifying agricultural bearing shielding types:

Because the service life differential between contact seals and non-contact shields in high-dust agricultural conditions is 3-5x (3,000-6,000 hours vs. 500-2,000 hours), the 15-25% cost premium for sealed bearings pays back at a rate of approximately 10:1 in avoided bearing failures and downtime costs.

Standard Agricultural Bearing Sizes and Cross-Reference Guide

For wholesale procurement of agricultural bearings, the following part numbers cover the majority of applications across combines, tractors, planters, and tillage equipment:

• 6204-2RS: 20mm bore × 42mm OD × 14mm width. Most common for intermediate shafts, feeder house side shafts on small combines, and transmission input shafts on tractors. The ’2RS’ double-contact-seal specification is our default recommendation for any dust-exposed application in this size.
• 6205-2RS: 25mm bore × 52mm OD × 15mm width. The workhorse bearing of agricultural machinery. Used in combine feeder house main shafts, grain elevator boot pulleys, planter transmission shafts, and tractor final drive yokes. This is the bearing I recommend in the highest volume for wholesale agricultural procurement programs.
• 6305-2RS: 25mm bore × 62mm OD × 17mm width. Higher radial load capacity than 6205, used in combine cylinder/concave bearings, separator bearings, and heavy tillage equipment shafts where radial loads exceed the 6205′s capacity.
• 6306-2RS: 30mm bore × 72mm OD × 19mm width. Large combine harvester feeder house main shafts, heavy grain elevator head pulleys, and silage chopper bearings.

When ordering wholesale agricultural bearings, I also recommend requesting the following specifications to ensure compatibility with your lubrication and operating environment:

• C3 internal clearance: Agricultural bearings operating in temperature-fluctuating environments benefit from C3 (greater than normal) internal clearance, which allows for thermal expansion of the bearing rings without reducing the operating clearance below acceptable minimum values. Standard CN (normal clearance) bearings can experience preload buildup during high-temperature operation, causing premature failure.
• Polyamide cage (TN type): Many standard agricultural bearings use a stamped steel cage. For high-speed or high-temperature agricultural applications (combine cylinders at 1,000+ RPM), specify polyamide (nylon) cage bearings, which offer quieter operation, better high-speed performance, and better tolerance of momentary misalignment.

Wholesale Procurement: Quality Verification and Supplier Selection

For buyers sourcing agricultural bearings wholesale, the bearing marketplace contains a significant proportion of low-quality or misrepresented products. We’ve seen counterfeit bearings with falsified markings sold as premium brands — these bearings appear superficially identical to genuine products but use inferior steel, inadequate heat treatment, and substandard sealing compounds that fail within hours of installation.

The verification steps we recommend for any wholesale bearing purchase are:

1. Request the bearing manufacturer’s lot test certificate: Every genuine bearing from a quality manufacturer ships with a lot test report documenting the bearing’s dimensional measurements, radial clearance, waveness (vibration) measurement, and visual inspection grade. If a supplier cannot provide lot test certificates, they are either selling unbranded or grey-market product.
2. Verify the seal material by part number suffix: The part number suffix (‘-2RS’, ‘-2Z’) specifies the seal type, but the seal compound is not encoded in the part number. Request the seal compound specification (NBR, FKM, PTFE) in writing and match it to the bearing’s technical datasheet. Suppliers who sell ‘-2RS’ bearings with generic rubber seals without specifying the compound are not providing adequate technical information.
3. Check the bearing steel specification: Quality agricultural bearings are made from vacuum-degassed bearing steel (typically 100Cr6 / AISI 52100 or equivalent) with a specified hardness of 60-65 HRC for the raceway surfaces. Low-quality bearings may use lower-grade steels with hardness values of 55-58 HRC, which provide significantly shorter service life under equivalent loads.
4. Conduct a salt water immersion test on seals: For a basic quality verification, immerse a sample bearing’s seal in a 5% salt water solution for 24 hours. NBR seals should show no significant swelling or deterioration. If the seal visibly swells, softens, or develops surface tackiness, it is not the specified compound — this is a common indicator of substandard or misrepresented seal materials.

Conclusion: The Right Shielding Decision Is Not Optional

The choice between contact seals and non-contact shields for agricultural bearings is not a minor specification detail — it is a decision that directly determines whether your bearings survive the harvest season or fail catastrophically during a time-critical window when every hour of combine downtime costs money you cannot recover.

We see too many wholesale buyers optimize purely on unit price, specifying non-contact shielded bearings (‘-2Z’) on high-dust applications because they appear to offer adequate protection at a slightly lower cost. Because the total cost of bearing failure in agricultural service — including downtime, replacement labor, expedited shipping, and lost harvest opportunity — typically exceeds the bearing’s purchase price by 50-100x, the marginal savings from shielded vs. sealed bearings is a false economy that punishes the farmer, the dealer, and the equipment owner.

Our recommendation is unambiguous: for any agricultural bearing application where dust exposure is a concern (which is nearly all field equipment — combines, tractors, planters, tillage, grain handling), specify contact-seal (-2RS) bearings with NBR or FKM seal compounds as your default standard. Reserve non-contact shields (-2Z) for enclosed transmission applications where the equipment housing provides the primary dust barrier and the bearing shields serve a secondary protective function.
