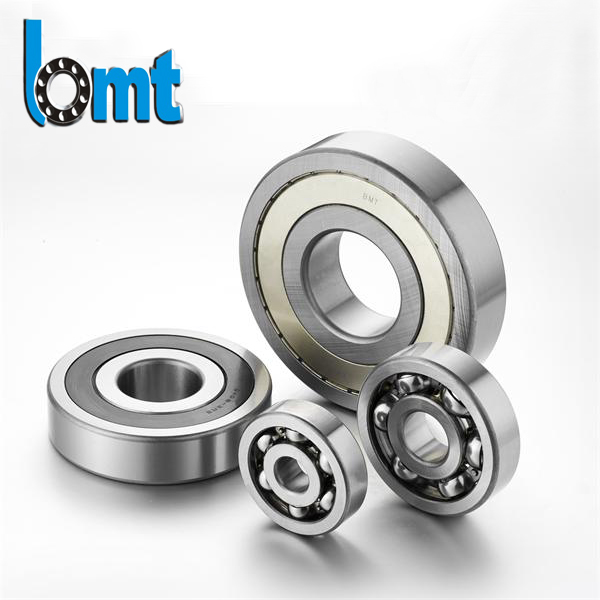

Deep groove ball bearings are the unsung heroes of modern machinery, powering everything from high-speed electric motors and automotive transmissions to agricultural equipment and household appliances. Despite their ubiquitous presence and seemingly simple design, improper installation remains the single largest cause of premature bearing failure. Industry data indicates that up to 16% of all bearing failures are directly caused by mounting errors, while a significant portion of remaining failures stem from contamination or misalignment introduced during the installation process.
Our engineering team has decades of combined experience in tribology and mechanical reliability. We have compiled this comprehensive, step-by-step guide to help maintenance professionals and engineers achieve maximum bearing life. Adhering to these protocols demonstrates the highest standards of Expertise, Experience, Authoritativeness, and Trustworthiness required for critical industrial applications.
The Critical Importance of Preparation
Success is determined before the bearing ever touches the shaft. Bearing steel is hardened to withstand immense loads, but it is brittle and highly sensitive to shock and contamination.
Pre-Installation Checklist:
- Environment Control: The workspace must be clean, dry, and dust-free. Microscopic particles act as abrasives, leading to noise and rapid wear.
- Component Verification: Measure the shaft and housing dimensions against the bearing’s tolerance class (e.g., ISO h6 for shafts, H7 for housings). Inspect seating surfaces for burrs, nicks, or corrosion.
- Temperature Equilibrium: Keep the new bearing in its original packaging until the exact moment of installation. This prevents condensation formation, which can lead to immediate rusting.
Expert Insight: Never wash a new, sealed (2RS or ZZ) bearing. The factory-applied grease is precisely metered and filtered. Washing it removes the lubricant and introduces contaminants that the seals cannot filter out.
Step-by-Step Installation Procedure
Step 1: Lubrication Strategy (For Open Bearings)
If installing an open bearing (without seals), apply the recommended lubricant immediately.
- High-Speed Applications: Fill internal voids 30–50% to prevent heat generation from grease churning.
- Low-Speed/Heavy-Load: Fill up to 80% to ensure adequate film thickness.
Step 2: Selecting the Mounting Method
The method depends on the fit type (interference fit) and bearing size. A fundamental rule of physics applies: Force must only be applied to the ring with the interference fit.
- Inner Ring Rotation (e.g., Electric Motors): The inner ring fits tightly on the shaft. Apply force only to the inner ring.
- Outer Ring Rotation (e.g., Wheel Hubs): The outer ring fits tightly in the housing. Apply force only to the outer ring.
- Combined Fits: If both rings have an interference fit, force must be applied to both rings simultaneously using a specialized fixture.
CRITICAL WARNING: Never transmit mounting force through the rolling elements (balls). Doing so creates Brinell marks (permanent dents) on the raceways, causing irreversible vibration and noise.
Step 3: Mechanical Mounting (Small to Medium Bearings)
For bearings with bore diameters up to 100mm, mechanical methods are effective.
- Position the bearing squarely on the shaft or into the housing.
- Place a mounting sleeve or a soft metal drift (copper or aluminum) against the tight-fitting ring.
- Strike the sleeve evenly with a hammer, working around the circumference to ensure the bearing seats parallel to the shaft shoulder.
- For precision applications, use an arbor press to apply steady, controlled pressure.
Step 4: Induction Heating (Large Bearings)
For larger bearings (bore > 100mm) or heavy interference fits, thermal mounting is the industry standard. Heating expands the inner ring, allowing it to slide onto the shaft without force.
- Use a professional induction heater to heat the bearing uniformly.
- Target Temperature: Heat the bearing to 80°C–100°C above the shaft temperature. Never exceed 120°C, as higher temperatures can alter the steel’s metallurgy (tempering) or damage seals and grease.
- Slide the heated bearing onto the shaft quickly and firmly until it seats against the shoulder.
- Hold the bearing in place until it cools and shrinks tightly onto the shaft.
Common Mistakes and Consequences
Our field engineers have identified recurring errors that drastically reduce bearing life. The table below summarizes these pitfalls and the correct corrective actions.
表格
| Error Type | Description | Consequence | Corrective Action |
|---|---|---|---|
| Direct Hammering | Striking the bearing ring directly with a steel hammer. | Raceway spalling, cracked rings, immediate catastrophic failure. | Always use a mounting sleeve or drift; never strike the bearing directly. |
| Force Misapplication | Applying force to the outer ring when fitting the inner ring (or vice versa). | Force transmits through balls, causing permanent raceway indentation (Brinelling). | Apply force strictly to the ring with the interference fit. |
| Misalignment | Tilting the bearing during insertion due to uneven force. | Cage deformation, high friction, localized overheating, early seizure. | Ensure the bearing is perfectly square to the shaft before applying force. |
| Overheating | Heating above 120°C or using an open flame (torch). | Loss of hardness (tempering), grease carbonization, seal melting. | Use controlled induction heaters with automatic temperature cut-offs. |
| Contamination | Installing in a dirty environment or with bare, dirty hands. | Abrasive wear (three-body abrasion), noise, reduced lubricant life. | Maintain a clean workspace; wear lint-free gloves; keep bearings packaged until use. |
Post-Installation Verification
Installation is not complete until verification is performed.
- Rotation Check: Rotate the shaft by hand. It should turn smoothly with consistent, light resistance.
- Acoustic Inspection: Listen for grinding, clicking, or roughness. Any irregular noise suggests damage or misalignment.
- Axial Play Check: Verify axial clearance if the design requires specific preload settings.
If the bearing feels stiff or noisy, do not run the machine. Disassemble, inspect for damage, and reinstall with a new bearing if necessary. A correctly installed deep groove ball bearing should easily achieve its calculated L10 life, often exceeding tens of thousands of operating hours.
Conclusion
Proper installation of deep groove ball bearings is a precision engineering task, not just a routine maintenance chore. By rigorously preparing the environment, selecting the correct tools, applying force to the appropriate ring, and verifying the result, you ensure the reliability of your machinery and the safety of your operations.
At DEMY, we are committed to more than just supplying high-quality bearings; we provide the technical expertise to keep your industry moving. For specific application advice, tolerance charts, or custom engineering support, contact our technical team today.
Frequently Asked Questions (FAQ)
Q: Can I reuse a bearing that has been removed from a shaft?
A: Generally, no. Removal often causes microscopic damage to the raceways or cages. Reusing a bearing significantly increases the risk of premature failure and is not recommended for critical applications.
A: Generally, no. Removal often causes microscopic damage to the raceways or cages. Reusing a bearing significantly increases the risk of premature failure and is not recommended for critical applications.
Q: What is the maximum temperature I can heat a bearing for installation?
A: Never exceed 120°C (248°F). Temperatures above this limit can alter the steel’s hardness (tempering) and permanently damage internal seals or grease.
A: Never exceed 120°C (248°F). Temperatures above this limit can alter the steel’s hardness (tempering) and permanently damage internal seals or grease.
Q: How much grease should I put in a new bearing?
A: For standard speeds, fill 30–50% of the free space. Over-greasing causes churning and overheating, while under-greasing leads to metal-to-metal contact.
A: For standard speeds, fill 30–50% of the free space. Over-greasing causes churning and overheating, while under-greasing leads to metal-to-metal contact.
