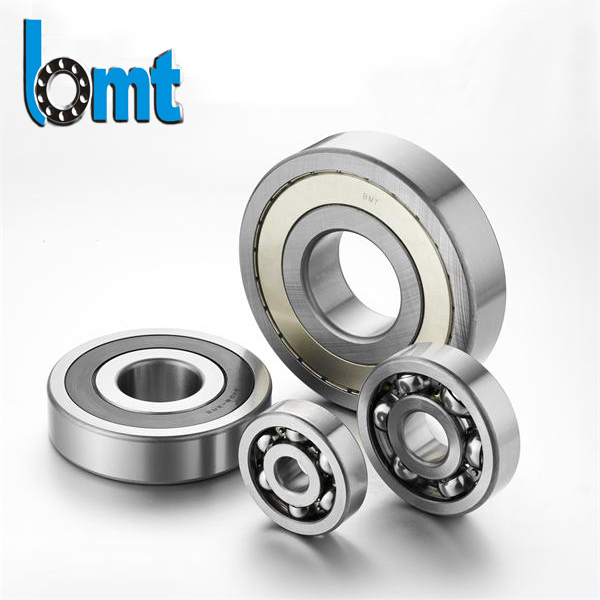

For most applications, a standard catalog deep groove ball bearing is the perfect, cost-effective solution. However, when machinery operates at the bleeding edge of performance, or in environments where failure is not an option, an “off-the-shelf” solution may fall short. This is the realm of the custom-engineered deep groove ball bearing—a component tailored to solve a specific set of unique challenges.
Identifying the Need for Customization
When should engineers consider a custom bearing solution? Key drivers include:
Non-Standard Dimensions: Shaft or housing sizes that fall between standard metric or inch series.
Extreme Performance Requirements: Speeds (DN values) or loads that exceed the limits of standard bearings.
Integration of Special Features: The need for built-in sensors, unique flange or clamping designs, or specific lubrication ports.
Material Incompatibility: Environments requiring exotic materials beyond standard chrome or stainless steel (e.g., high-temperature alloys, special coatings).
Ultra-High Precision: Applications like semiconductor manufacturing or aerospace gyroscopes requiring tolerance levels finer than the highest commercial grades (beyond ABEC 9/P2).
The Customization Spectrum: From Modified to Fully Engineered
Customization exists on a spectrum, offering flexible solutions.
Modified Standard Bearings: The most common and economical entry point. A standard bearing is altered post-production. Examples include:
Adding special seals or shields for unique contaminants.
Applying specific coatings (nickel, chrome oxide, TDC) for corrosion or wear resistance.
Filling with a proprietary, application-specific lubricant.
Modifying internal clearance (C1, C4, C5) for precise thermal management.
Semi-Custom Bearings: Starting with a standard bearing ring design but altering key elements. This could involve:
A unique cage material and design (e.g., a monolithic, machined phenolic cage for ultra-quiet operation).
A hybrid ceramic design with silicon nitride balls for electrical insulation, higher speed, or longer life.
A special grinding process on raceways to optimize load distribution.
Fully Engineered Bearings: A ground-up design. This involves:
Creating entirely new geometries for rings and raceways.
Developing proprietary heat treatment processes.
Integrating the bearing with other components (e.g., a shaft or housing) into a single, optimized unit.
The Collaborative Development Process
Creating a custom deep ball bearing is a partnership between the customer’s engineering team and the bearing manufacturer’s application specialists. The process typically follows these stages:
Application Analysis: A deep dive into loads, speeds, temperatures, environment, and desired life.
Virtual Prototyping & FEA: Using advanced software to model stresses, heat generation, and deflection before any metal is cut.
Prototype Manufacturing & Testing: Building a small batch for rigorous lab and field testing to validate performance.
Production & Quality Assurance: Scaling up with a dedicated quality plan for the custom specification.
Conclusion: Engineering the Optimal Solution
A custom deep groove ball bearing is not merely a more expensive part; it is a co-engineered system element designed to unlock new levels of machine performance, reliability, and efficiency. When standard bearings are a limiting factor, embracing customization is the strategic choice to overcome design barriers, reduce total system cost through enhanced longevity, and achieve a true competitive advantage. It represents the pinnacle of applied bearing technology, where the classic deep groove principle is refined to meet the unique demands of tomorrow’s innovation.
